PS- MNG144(HCBF) 580W – 600WMNG

Features

Warranty Icon

30-Year Linear Power Warranty

Mechanical Load Icon

5400Pa Front / 2400Pa Back Static Mechanical Load Capacity

Reliability Icon

Enhanced 16-Busbar technology for superior reliability

N-Type Icon

Ultra-low annual degradation with N-Type technology (-0.4%)

Temperature Icon

Better temperature coefficients come from half-cell design

Anti-PID Icon

Exceptional anti-PID performance to ensure module’s stable power output

Shading Icon

Less partial shading current mismatch loss so more power output

📄
Download Datasheet (PDF)
EXUS
BrandMNG
Categories

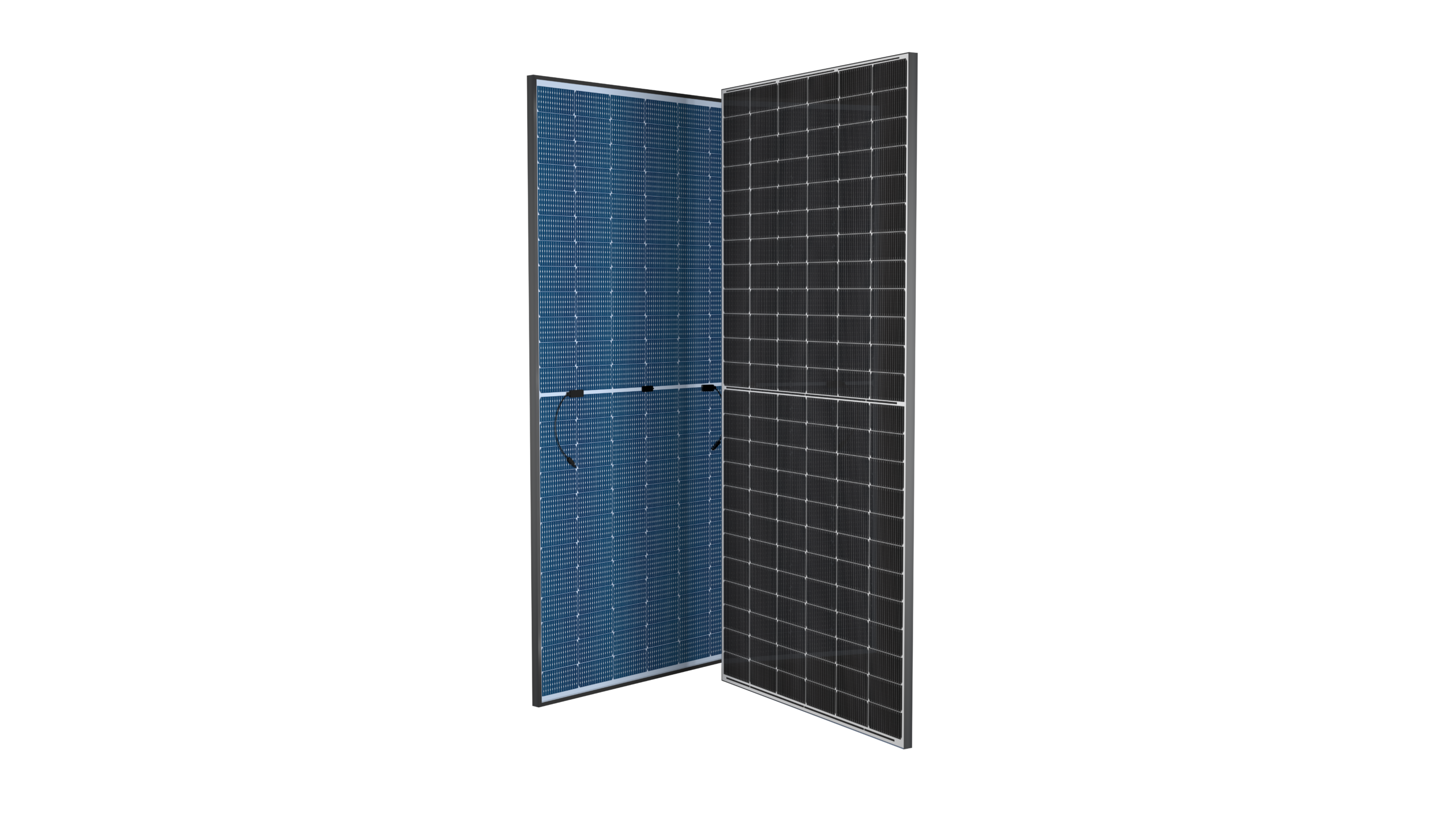

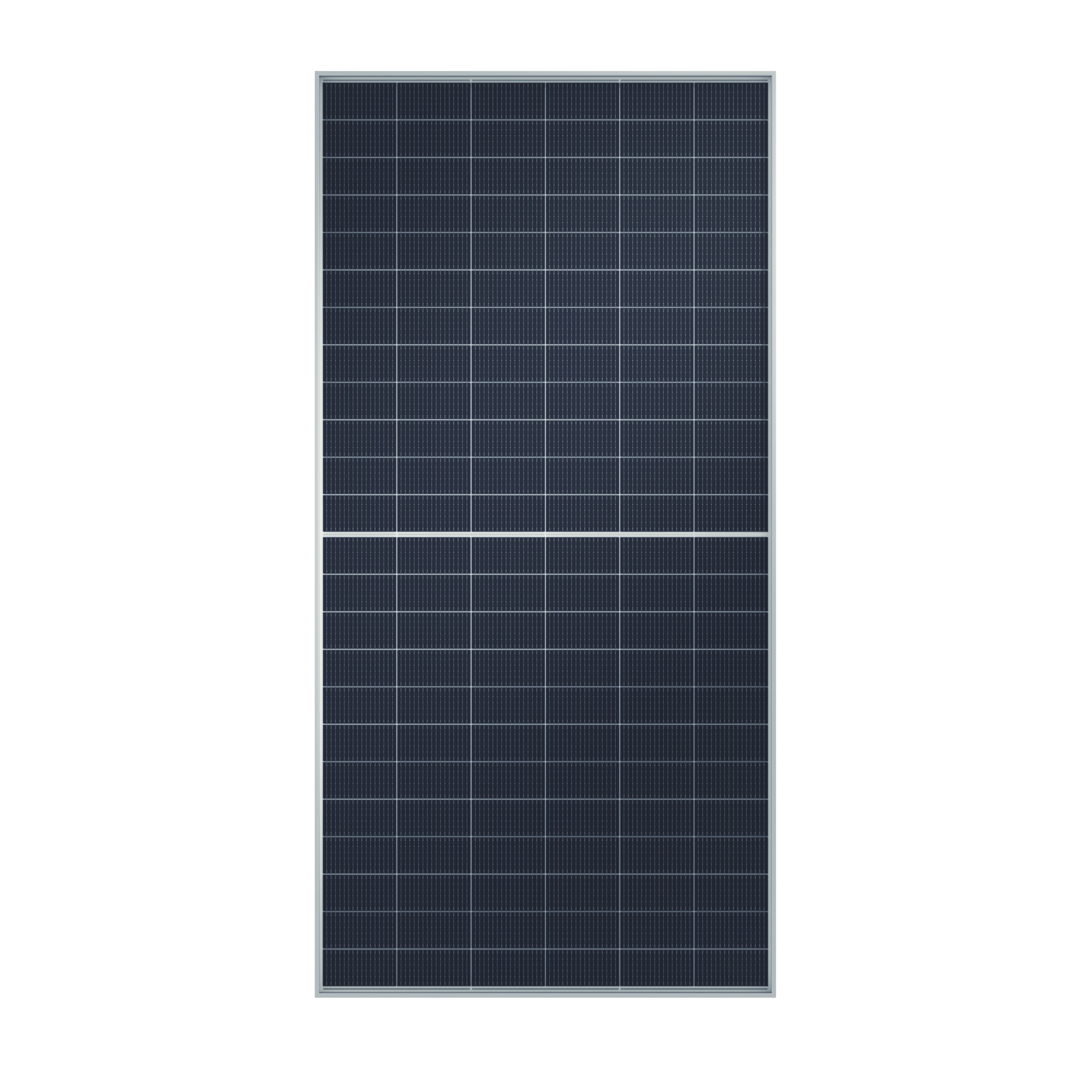

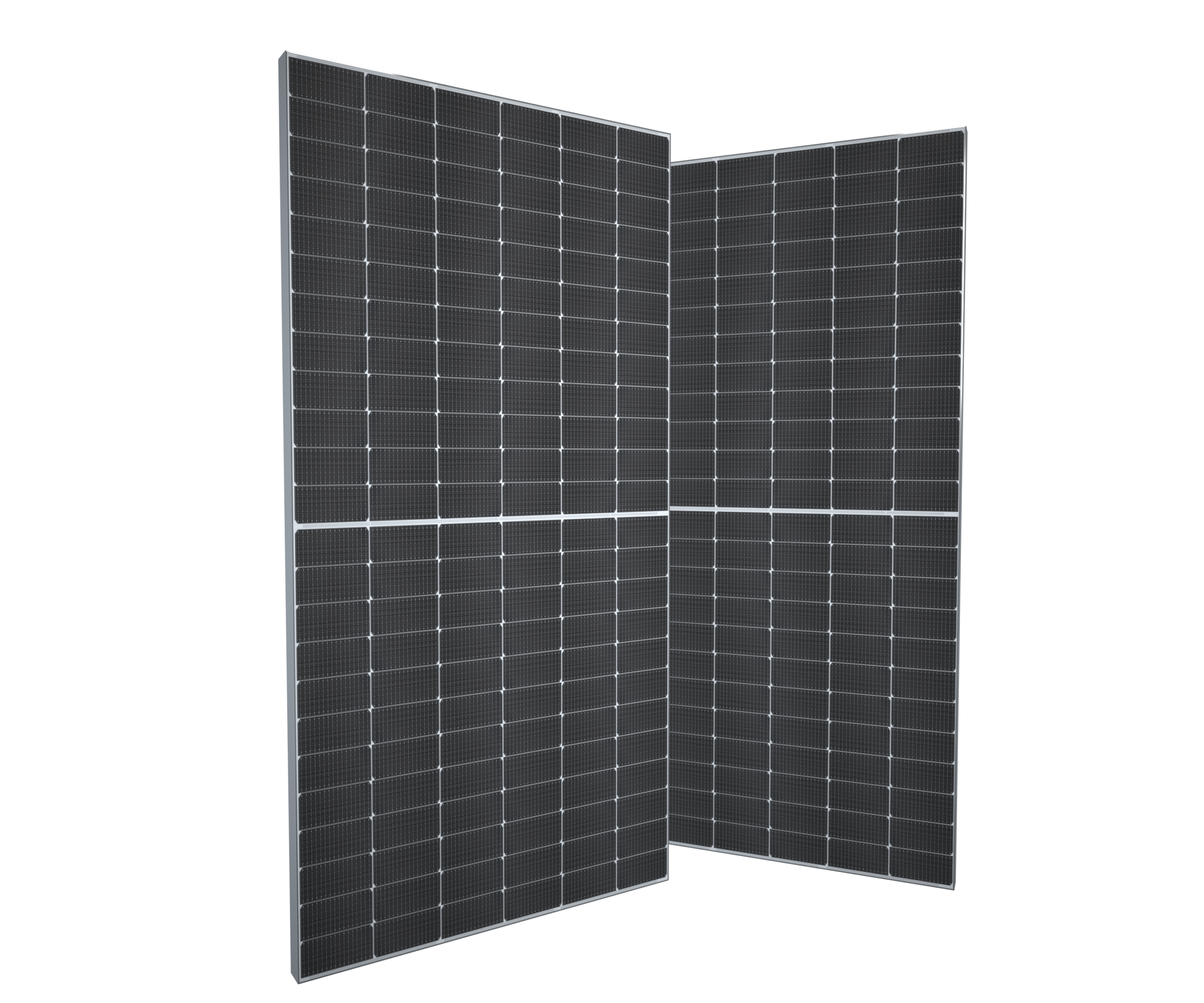

Philadelphia Solar’s Mono-Crystalline N-type modules with power up to 600Wp are produced using state-of-the-art (automated) robotic production lines. These modules are suitable to be used for most electrical power applications and have excellent durability to prevailing weather conditions.

BENEFITS

  • Performance Warranty: 12-Year Product Warranty and 30-Year Linear Power Warranty.
  • Bifacial Technology: Power output increases by 5-25% from the backside, resulting in significantly reduced LCOE and (IRR).
  • Efficiency & Reliability: Improved light trapping and current collection technology enhance module power output and reliability.
  • Superior Durability: Exceptional Anti-PID performance through the use of optimized mass-production processes and strict materials control.
  • Mechanical Strength: Built to withstand high mechanical loads of 5400 Pascal (Front) and 2400 Pascal (Back).
  • Annual Degradation: Ultra-low annual power degradation of only -0.4%.

Applications

On-Grid Residential Roof-Tops

On-Grid Residential Roof-Tops

Ideal for residential installations to maximize energy savings and increase property value.

Commercial Industrial Roof-Tops

On-Grid Commercial / Industrial Roof-Tops

High-performance solution for commercial and industrial facilities to reduce operating costs.

Solar Power Plants

Solar Power Plants

Engineered for utility-scale projects delivering reliable power generation and long-term performance.

Off-Grid Systems

Off-Grid Systems

Reliable energy for remote locations and off-grid applications, including lighting systems.

Additional information

Weight 32,5 kg
Dimensions 2279 × 1134 × 30 mm
Power Output:

580Wp – 600Wp

Module Efficiency:

Up to 23.22%

Cell Type:

N-Type Mono-Crystalline

Cells per Module:

144 (72 x 2)

Front Surface:

2mm Semi-Tempered Pattern Coated Glass

Junction Box:

IP 68 with original MC4

Mechanical Load:

Front (5400 Pascal) and Back (2400 Pascal)

Product manual:

Included in the package

Origin:

Made In Jordan

PAN Files

Download the latest approved PAN files for simulation software.

  • What is the benefit of the Double Glass design in the MNG series?

    • The dual-glass structure provides superior protection against environmental factors, ensures higher fire safety (UL Type 29), and increases the long-term durability of the module.

  • How many modules can fit in a 40ft container?

    • This model allows for higher density shipping, fitting 720 modules per 40ft High-Cube container.

  • What is the bifaciality ratio of this module?

    • The bifaciality ratio is 80% ± 5%, allowing significant energy gain from the back surface.
