PS-MNB144-HCBF-580W-600WMNB

Features

Warranty Icon

30-Year Linear Power Warranty

Mechanical Load Icon

5400Pa Front / 2400Pa Back Static Mechanical Load Capacity

Reliability Icon

Enhanced 16-Busbar technology for superior reliability

N-Type Icon

Ultra-low annual degradation with N-Type technology (-0.4%)

Temperature Icon

Better temperature coefficients come from half-cell design

Anti-PID Icon

Exceptional anti-PID performance to ensure module’s stable power output

Shading Icon

Less partial shading current mismatch loss so more power output

📄
Download Datasheet (PDF)
EXUS
BrandMNB
Categories

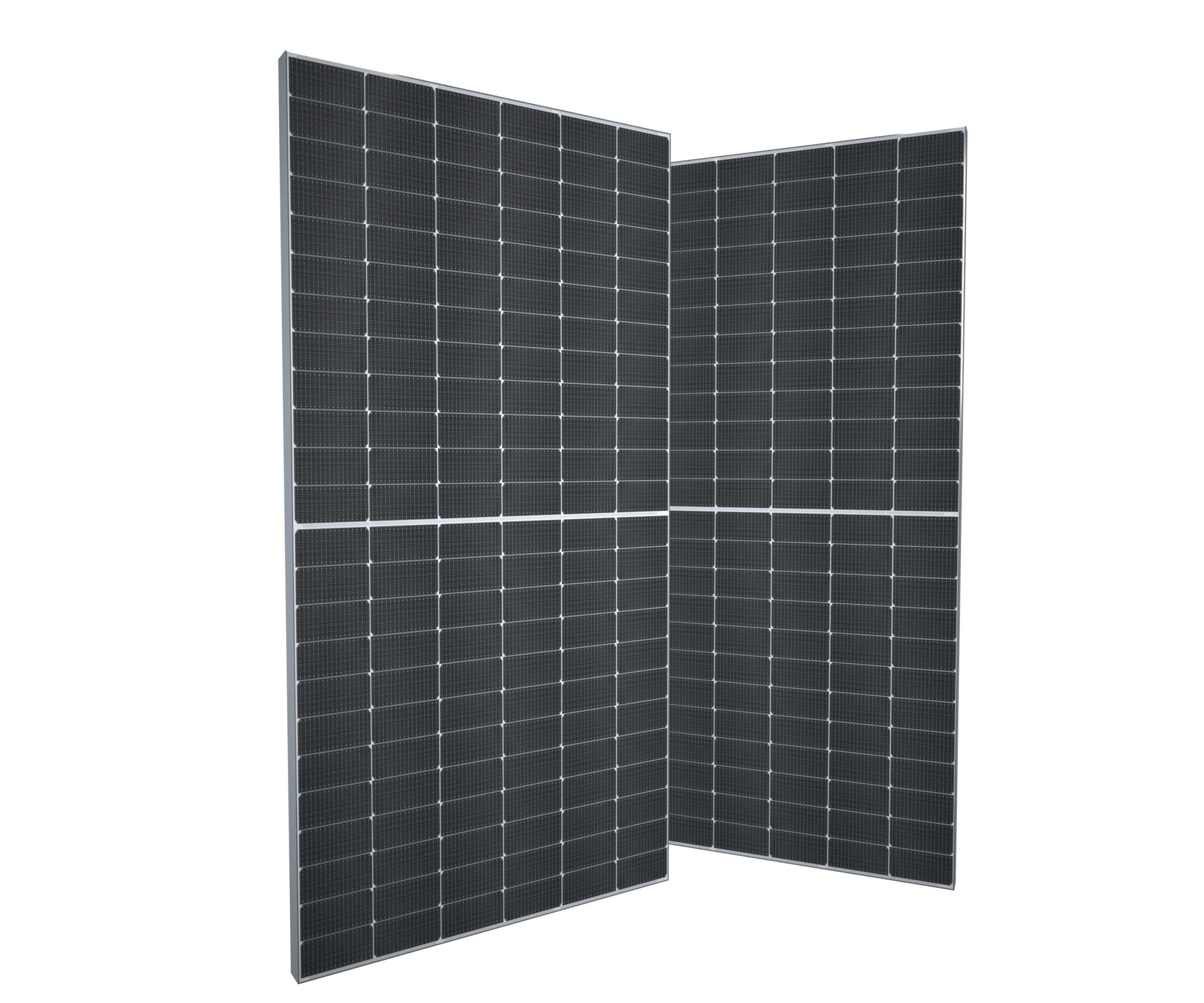

Philadelphia Solar’s Mono-Crystalline N-type modules with power up to 600Wp are produced using state-of-the-art (automated) robotic production lines. These modules are suitable to be used for most electrical power applications and have excellent durability to prevailing weather conditions.

BENEFITS

  • Performance Warranty: 12-Year Product Warranty and 30-Year Linear Power Warranty.
  • Bifacial Technology: Power output increases by 5-25% from the backside, resulting in significantly reduced LCOE and IRR.
  • Efficiency & Reliability: Improved light trapping and current collection technology enhance module power output and reliability.
  • Superior Durability: Exceptional Anti-PID performance and improved temperature coefficients from the half-cell design.
  • Mechanical Strength: Built to withstand high mechanical loads of 5400 Pascal (Front) and 2400 Pascal (Back).
  • Annual Degradation: Ultra-low annual power degradation of only -0.4%.

Applications

Residential Solar Icon
On-Grid Residential Roof-Tops
Commercial Solar Icon
On-Grid Commercial / Industrial Roof-Tops
Power Plants Icon
Solar Power Plants
Off-grid Lighting Icon
Off-Grid Systems
(Including Lighting Systems)

Additional information

Weight 29 kg
Dimensions 2278 × 1134 × 35 mm
Power Output:

580Wp – 600Wp

Module Efficiency:

Up to 23.23%

Cell Type:

N-Type Mono-Crystalline

Cells per Module:

144 (72 x 2)

Front Surface:

3.2mm Tempered AR Coated Glass

Junction Box:

IP 68 with original MC4

Mechanical Load:

Front (5400 Pascal) and Back (2400 Pascal)

Product manual:

Included in the package

Origin:

Made In Jordan

  • What is the maximum power output of this series?

    • This series delivers a peak power of up to 600Wp with a positive power tolerance of 0~+3%.

  • What is the efficiency of the PS-MNB144 module?

    • The module reaches a high efficiency of up to 23.23%.

  • How many modules can fit in a 40ft container?

    • A standard 40ft High-Cube container can accommodate 620 modules (31 modules per pallet).

  • What are the dimensions and weight of this panel?

    • The panel dimensions are 2278 x 1134 x 35 mm and it weighs approximately 29 kg.

  • Does it perform well in high temperatures?

    • Yes, it features a low power temperature coefficient of -0.29% / °C, ensuring stable output even in hot climates.
