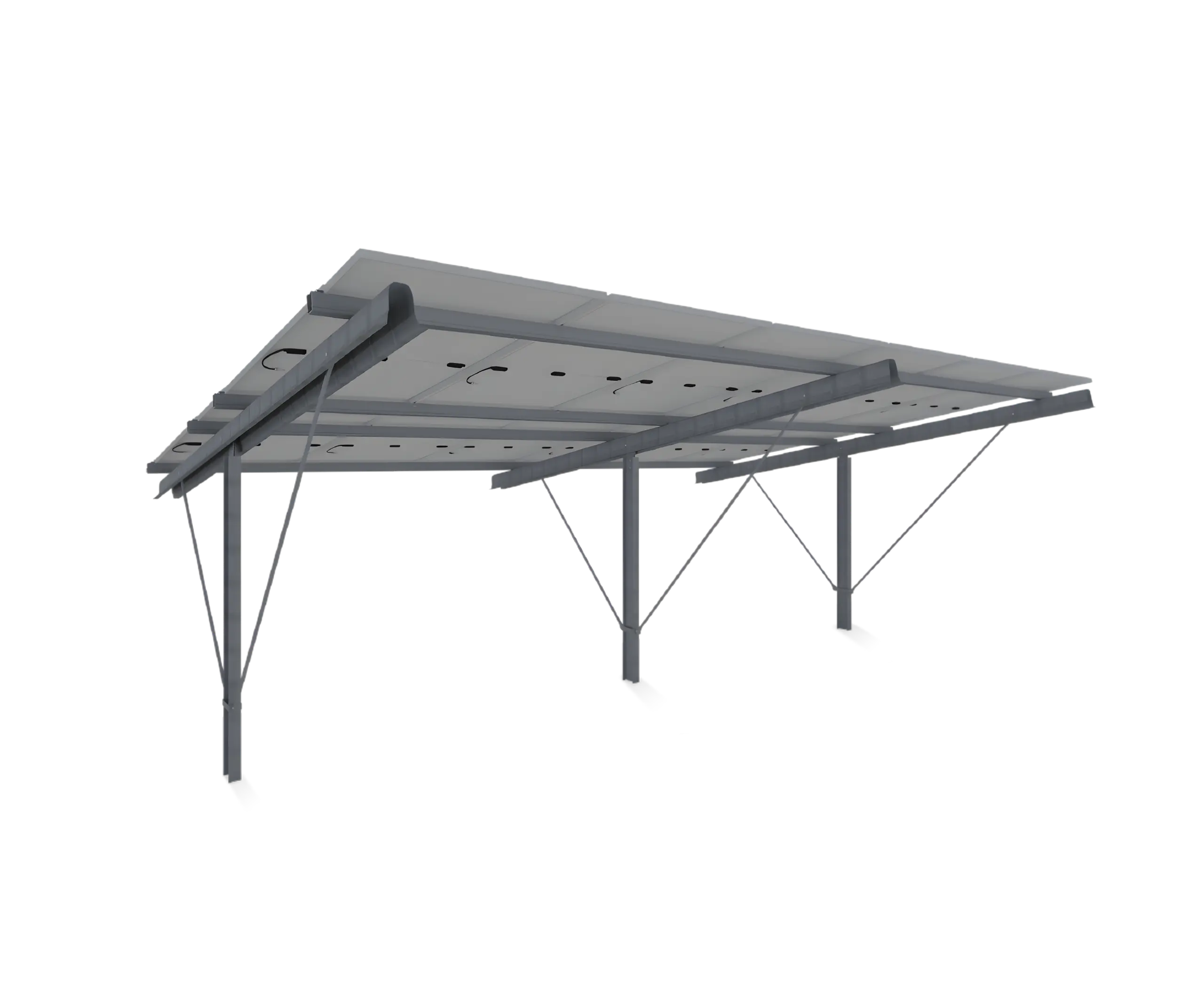

Ramming/Ground Mounting Structure

Ramming/Ground Mounting StructurePV Mounting Structure

Features & Benefits

20-Year Anti-Corrosion Warranty & 10-Year Warranty on Accessories

Single Column with 2-Vertical Module Configuration

Fastest Possible Assembly with Minimum Employees

Superior corrosion resistance (Magnelis) – 3x better than standard galvanization

Self-healing protection for cut edges ensuring structural integrity

Engineered to Withstand High Wind Speeds up to 160 km/hr:

Compliant with international standards: ASCE, AISC, IBC, and British Code

📄
Download Structure Datasheet (PDF)

Philadelphia Solar’s Ramming/Ground Mounting Structure is a high-capacity solution designed for large-scale solar projects in open areas. This single-column system is engineered for speed and stability, featuring a 2-vertical module configuration that ensures maximum energy yield and structural durability in the most challenging environments.

Applications

On-Grid Residential Roof-Tops

On-Grid Commercial / Industrial Roof-Tops

Solar Power Plants

Off-Grid Systems
(Including Lighting Systems)

Additional information

Installation Site:	Open Areas
Tilt Angle:	Based on client region
Applicable Temperature:	-50°C to 100°C.
Structure Materials:	Magnelis, Hot-Dip Galvanized Steel, and Stainless Steel Accessories.
Basic Wind Speed:	120 km/hr (Optimized up to 160 km/hr).
Design Standards:	Compliant with Jordanian loads code, ASCE, AISC, and IBC.

Is this system suitable for all soil types?
- Yes, the ramming system is designed for high stability in various soil conditions, and the design can be tailored based on site-specific geotechnical reports.

Does the single-column design compromise stability?
- Not at all; it is engineered to meet rigorous international standards (ASCE, AISC, IBC) to handle both wind and snow loads effectively.

What makes the assembly faster than other systems?
- The streamlined design and minimum number of employees required for installation make it our fastest assembly solution for ground-mounted projects.
