Long Life Cycle: 6,000 cycles at 80% DOD for long-term reliability.
Sleek Design: Modern, wall-mounted, and high-energy density solution.
Easy Scalability: Supports parallel connection of up to 15 units.
Smart BMS: Integrated management system with CAN, RS232, and RS485.
User Interface: Built-in LCD display and real-time LED indicators.
Superior Safety: Powered by advanced Lithium Iron Phosphate (LiFePO4) technology.

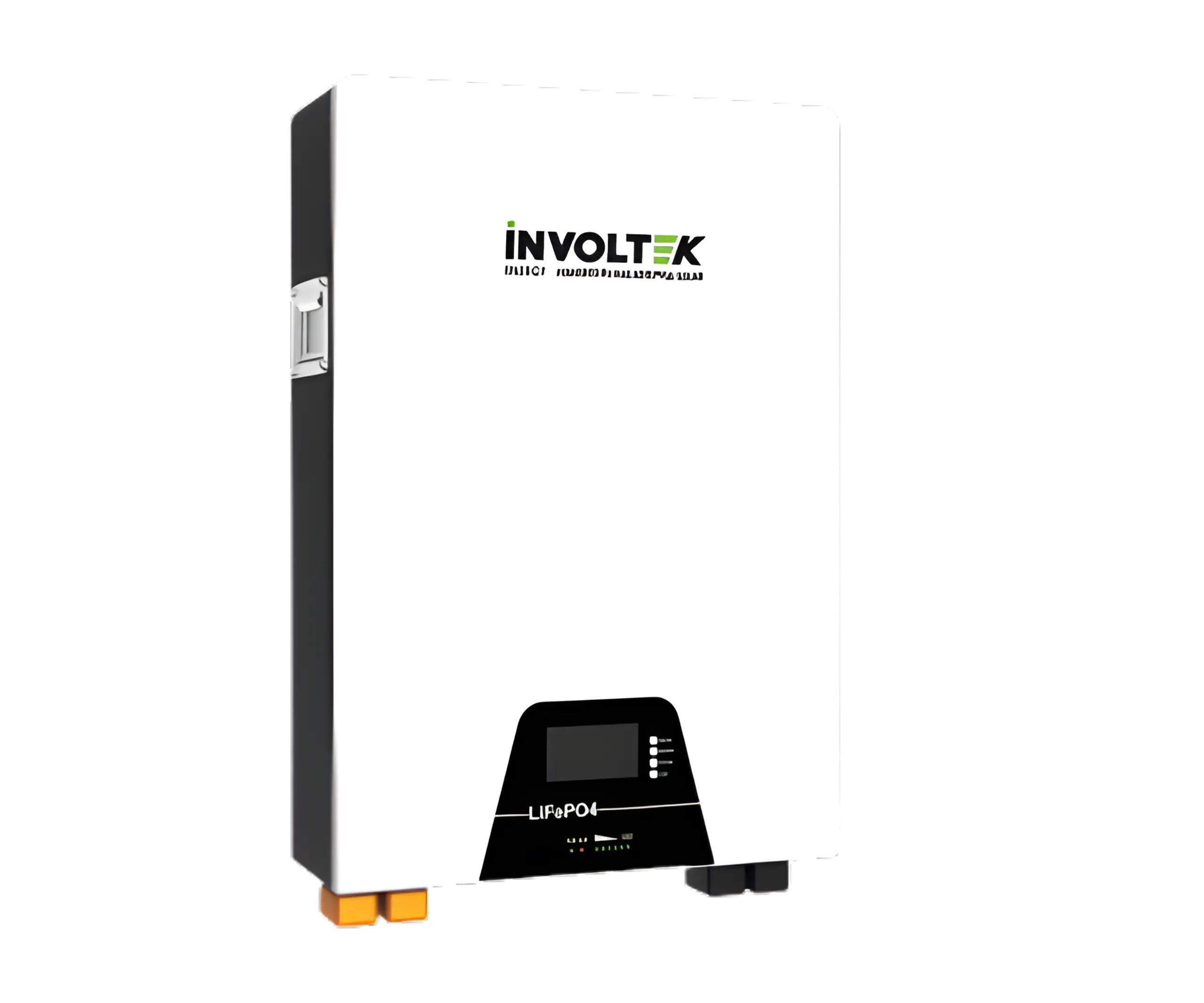

Involtek NVW Series Wall-Mounted Lithium (LiFePO4) battery solutions are highly integrated, deep-cycle backup power systems designed for solar home energy storage. With a fashionable design and high power density, this series offers a long service life and exceptional ease of installation and expansion to meet your specific energy needs.
| Battery Type | LiFePO4 (LFP) |
|---|---|
| Nominal Voltage | 51.2V (Available in 25.6V) |
| Energy Range | 1.28 kWh – 10.24 kWh |
| Life Cycle | 6000 Cycles @ 80% DOD |
| Max Charging Current | 100A |
| Max Discharging Current | CAN2.0 / RS232 / RS485 |
| Operation Temp. | Charge: 0~45°C / Discharge: -20~55°C |
| Approx. Weight | 13.8kg up to 82kg |
| Communication | CAN2.0 / RS232 / RS485 |
| Parallel Connection | Up to 15 Units |
How many battery modules can I connect together?
You can connect up to 15 units in parallel to increase your total storage capacity as your energy needs grow.
What is the expected lifespan of the Involtek NVW battery?
It is designed for long-term use, offering over 6,000 cycles at 80% depth of discharge.
Can I monitor the battery status easily?
Yes, each unit features a built-in LCD display and real-time indicators for SOC, alarms, and running status.
Is it compatible with my solar inverter?
The series supports standard industrial protocols (CAN/RS485/RS232), making it compatible with most modern solar storage inverters.
